富星貿易行有限公司前身之"富星貿易行", 成立於1973年.
主要業務包括代理及批發各類專業工具及儀器．
超過30年, 我們的經營理念是: 致力提供最有价值的工具器材
富星現已成為業內廣泛認同的信心保證.
The former company
"FUSTAR Trading Co." of "FUSTAR Trading Co. Ltd." was
established in 1973 with main business that include
import and wholesale of all kinds of professional tools
and devices.
For over 30 years our motto is "To
provide customers the highest quality tools with the
best value for money." At FUSTAR, quality is a
guarantee.
|
日本"MARVEL-孖寶"電設工具．ELECTRICIAN’S TOOL
"MARVEL"是日本最大的電設工具製造商，產品包括各類電工刀，電纜剪，鋼絲剪，壓接鉗及壓接工具等．100% 日本製造！
|
鋼絲剪
ROD AND WIRE CUTTER |
電工刀
ELECTRICIAN KNIFE |
|
壓接工具．CRIMPING TOOL |
電纜剪．CABLE CUTTER |
[TOP]
電工刀．ELECTRICIAN KNIFE
|
|
- Non-slip finger grooves. Made from high-quality rubber. Effective for sweaty fingers in summer and for gloved fingers in winter.
- Well-balanced double-edged blade for keen cutting and rough use.
- Safety lock device.
- Case with a whetstone and revolution free joint.
|
Item No. |
Blade Length |
Overall Length |
Weight |
|
LE-325 |
80mm |
234mm |
130g |
|
|
|
- 50mm carbon steel blade.
- Cable stripping notch.
- Non-conducting ABS plastic handle.
|
|
|
- 60mm sickle shaped blade.
- Special high carbon steel.
- Hardwood handle.
|
|
|
- 70mm heavy blade.
- Special high carbon steel.
- Hardwood handle.
|
|
|
- 90mm heavy blade.
- Special high carbon steel.
- Hardwood handle.
|
|
|
- 80mm stainless steel blade
- Corrosion resistance.
- Hardwood handle.
- Stainless bolster, lock back.
|
|
|
- 70mm stainless steel blade.
- Corrosion resistance.
- Non-conducting ABS plastic handle.
|
|
|
- Straight knife with 70mm blade.
- Hardwood handle.
- Supplied with artificial leather sheath.
|
[TOP]
電纜剪．CABLE CUTTER
|
|
- Three sizes of cutter are available for copper cable.
- The shape of the blades is designed to cut without distortion, leaving the end of the cable round.
- The blades are high-frequency quenched.
- Polished head with dipped vinyl grips.
- Light in weight.
|
|
Item No. |
Length |
Weight (g) |
Copper Cable |
|
(mm) |
(in.) |
Area (mm2) |
AWG |
|
ME-22 |
160 |
6-1/4 |
160 |
22 max |
#4 |
|
ME-22C(with cushion grips) |
160 |
6-1/4 |
185 |
22 max |
#4 |
|
ME-38 |
210 |
8-1/4 |
260 |
38 max |
#2 |
|
ME-60 |
235 |
9-1/4 |
430 |
60 max |
1/0 |
＊NOTICE：Do not cut iron wire and piano wire. Do not hit the blades of the cutter with a hammer to cut cable. |
|
|
- Four sizes of cutter are available for copper cable.
- The shape of the blades is designed to cut without distortion, leaving the end of the cable round for subsequent stripping and crimping operations.
- The blades are forged from special tool steel, fully heat treated and ground, while the handles are of heat treated and tempered aluminum alloy, resulting in a tool which is both extremely sturdy and light in weight.
- Ground finish on blades.
- Metallic blue baked enamel handles with heavy yellow vinyl grips.
|
|
Item NO. |
Length |
Weight (g) |
Copper Cable |
|
(mm) |
(in.) |
Area (mm2) |
AWG |
|
ME-80
ME-150
ME-250
ME-500 |
320
455
600
800 |
12-5/8
17-7/8
23-5/8
31-1/2 |
730
1,100
1,540
2,930 |
80 max
150 max
250 max
500 max |
3/0
300 MCM
500 MCM
1,000 MCM | |
[TOP]
鋼絲剪．ROD AND WIRE CUTTER
|
|
- Cut stainless steel wire rope, hardened steel rods, telegraph strainer and messenger wire.
- Long handles and blade shape for optimum leverage.
- Blades and heat treated aluminum handle parts are replaceable.
|
|
Item No. |
Length |
Weight
(g) |
Wire Rope
dia.(mm) |
Piano Wire
dia.(mm) |
Steel Rod
dia.(mm) |
Copper Cable |
|
(mm) |
(in.) |
Area (mm2) |
AWG |
|
MHS-65 |
585 |
23 |
2,250 |
16 max. |
4.5 max. |
11 max. |
150 max. |
300MCM | |
|
|
- V-shaped blade profile for easy cutting of steel wire and rope without fraying.
- Double heat treated drop forged blades from special tool steel.
- Utility cutters for steel wire rope, mild steel rod.
- Handles of heat treated aluminum alloy, light and strong.
- All parts replaceable.
|
|
Item No. |
Length |
Weight
(g) |
Steel Rod
dia.(mm) |
Wire Rope
dia.(mm) |
Copper Cable |
|
(mm) |
(in.) |
Area (mm2) |
AWG |
|
MI-60 |
310 |
12-1/4 |
730 |
5 max. |
7 max. |
60 max. |
1/0 |
|
MI-100 |
445 |
17-1/2 |
1,100 |
7 max. |
10 max. |
100 max. |
4/0 |
|
MI-200 |
600 |
23-5/8 |
1,800 |
9 max. |
12 max. |
150 max. |
300MCM | | |
[TOP]
壓接工具．CRIMPING TOOL
|
單手壓接工具 |
- Spring assists easy one-handed operation.
- Jaws investment cast from chrome molybdenum steel and fully heat treated. Precise die form.
- Profiled polypropylene grips resist chipping, cracking and tearing.
- Ratchet controlled cycle for consistent results.
- 可壓接絕緣及不絕緣的接頭．
|
|
Item No. |
Length |
Weight
(g) |
Terminal Type |
Terminal Sizes |
|
(mm) |
(in.) |
DIN (mm2) |
AWG |
|

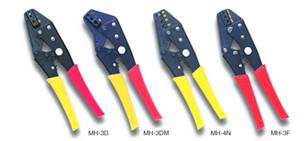

MH-3D |
240 |
9-1/2 |
445 |
Insulated Terminals |
1.5, 2.5, 6.0 |
|
|
MH-3DM |
240 |
9-1/2 |
445 |
Insulated Terminals |
1.5, 2.5, 6.0 |
22-16, 16-14, 12-10 |
|
MH-4N |
240 |
9-1/2 |
425 |
Non-insulated Terminals |
1.5,2.5,6.0,10.0 |
22-16, 16-14, 12-10, 8 |
|
MH-3F |
230 |
9 |
425 |
Chain Terminals |
0.5-10,1.5-2.5,4.0 |
|
|
|
For non-insulated terminals
不絕緣接頭 |
- Constructed and tested to JIS C 9711
- Long-lasting precision tools
- The jaws are investment cast in chrome molybdenum steel, fully heat treated.
- The indent faces ground to ensure high accuracy of the crimping action.
- The handles are made from carbon alloy steel, fully heat treated.
- Black finished jaws.
- In order of minimize wear, annular grooves, packed with grease, surround the pivots, maintaining the precision of the tool over long periods of use.
- 可壓接不絕緣的接頭．
|
|
Item No. |
Length |
Weight (g) |
Terminal Type |
Terminal Sizes |
|
(mm) |
(in.) |
JIS (mm2) |
DIN (mm2) |
|
MH-01 |
195 |
7-3/4 |
230 |
Non-insulated Terminals |
1.25, 2.0 |
1.5, 2.5 |
|
MH-61(已停產) |
260 |
10-1/4 |
430 |
Non-insulated Terminals |
1.25, 2.0, 5.5, 8.0 |
1.5, 2.5, 6.0, 10.0 |
|
MH-88 |
285 |
11-1/4 |
500 |
Non-insulated Terminals |
2.0, 5.5, 8.0, 14.0 |
2,5, 6.0, 10.0, 16.0 |
|
MH-99 |
340 |
13-3/8 |
635 |
Non-insulated Terminals |
5.5, 8,0, 14.0, 22.0 |
6.0, 10.0, 16.0, 25.0 |
|
|
可調式壓接工具 |
- Easy to set by screwing adjustment for terminal size
- One stroke of the handle completes the crimp
- Chome molybdenum steel handle
- Ductile cast iron body
- Special tool steel dies
- Critical parts fully heat treated
- Replacement parts available
|
|
Item No. |
Length |
Weight (g) |
Terminal Sizes |
|
Conductor area |
AWG |
|
(mm) |
(in.) |
JIS (mm2) |
DIN(mm2) |
|
MK-38 |
545 |
21-1/2 |
2,350 |
8, 14, 22, 38 |
10, 16, 25, 35 |
|
|

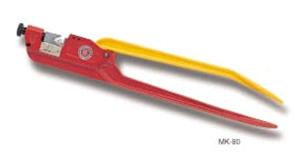

MK-80 |
570 |
22-1/2 |
2,735 |
8, 14, 22, 38, 60, 80 |
10, 16, 25, 35, 50, 70, 95 |
Copper #8 through 250 MCM
aluminum #8 through 4/0 | |
| | |
|
|
