產品名稱．Product Item：機械式扭力／扭矩扳手（磅尺）．
TORQUE SCREW DRIVERS．
產品型號．Model Number：
NO:2130-11．NO:2130-33．NO:2130-68．
NO:2140-68．NO:2140-135．NO:2140-225．NO:2140-330．
NO:2150-810．
NO:2160-940．NO:2160-2000．
2130
2160 |

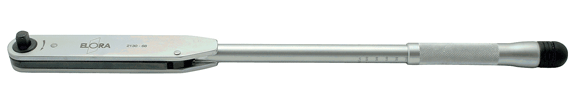

機械式扭力／扭矩扳手（磅尺）．
TORQUE SCREW DRIVERS |
|
Application |
為左手和右手使用．
for left and right hand use. |
| Type |
以推擠式方形套筒，
with Push Through Square Drive,
與測微表類型袖子，
with micrometer type sleeve,
允許準確預設式扭力／扭矩數值，
allowing accurate preset of torque values,
以可聽見的點擊，
with audible click,
準確性： ±先定數據 3%．
accuracy ± 3% of preset value.
|
|
Standard |
square drive according to DIN / ISO 6789 |
|
規格．SPECIFICATIONS：
|
Stock-No. |
Square
Drive
(Black) |
Range
Nm |
Range
kgm |
Range
in.lb. |
Range
ft.lb. |
Pitch
Nm |
Pitch
kgm |
Pitch
in.lb. |
Pitch
ft.lb. |
Width
mm |
Packing
pcs. |
Weight
g |
|
2130-11 |
3 / 8 " |
2.5 - 11 |
0.3 - 1.2 |
20 - 100 |
2 - 8 |
0.5 |
0.2 |
10 |
0.5 |
301 |
1 |
560 |
|
2130-33 |
3 / 8 " |
5 - 33 |
0.5 - 3.4 |
40 - 300 |
4 - 24 |
1 |
0.2 |
10 |
1 |
410 |
1 |
690 |
|
2130-68 |
3 / 8 " |
12 - 68 |
1.2 - 7 |
100 - 600 |
10 - 50 |
2 |
0.2 |
20 |
2 |
482 |
1 |
1,000 |
|
2140-68 |
1 / 2 " |
12 - 68 |
1.2 - 7 |
100 - 600 |
10 - 50 |
2 |
0.2 |
20 |
2 |
482 |
1 |
1,000 |
|
2140-135 |
1 / 2 " |
25 - 150 |
2.5 - 15 |
200 - 1,300 |
20 - 110 |
5 |
1 |
50 |
2 |
560 |
1 |
1,700 |
|
2140-225 |
1 / 2 " |
50 - 250 |
5 - 25 |
450 - 2,200 |
40 - 180 |
10 |
1 |
50 |
5 |
610 |
1 |
2,300 |
|
2140-330 |
1 / 2 " |
70 - 350 |
7 - 35 |
500 - 3,100 |
50 - 260 |
10 |
1 |
100 |
10 |
780 |
1 |
3,000 |
|
2150-810 |
3 / 4 " |
150 - 800 |
15 - 80 |
1,400 - 7,000 |
120 - 580 |
20 |
2 |
200 |
20 |
940 |
1 |
6,500 |
|
2160-940 |
1" |
200 - 1,000 |
20 - 100 |
1,800 - 8,500 |
150 - 750 |
25 |
2.5 |
250 |
25 |
1,030 |
1 |
9,700 |
|
2160-2000 |
1" |
500 - 2,000 |
50 - 200 |
4,500 - 17,500 |
350 - 1,500 |
50 |
5 |
500 |
50 |
1,410 |
1 |
18,000 | |
