德國“ELORA-易利拿”精密扭力/扭矩工具及設備.TORQUE TOOLS & INSTRUMENTS
電子扭力/扭矩測量儀.ELOTRONIC TORQUE METERS ETM |
|
Elora 德国易利拿扭力工具系列 -> 電子扭力/扭矩測量儀.ELOTRONIC TORQUE METERS ETM |

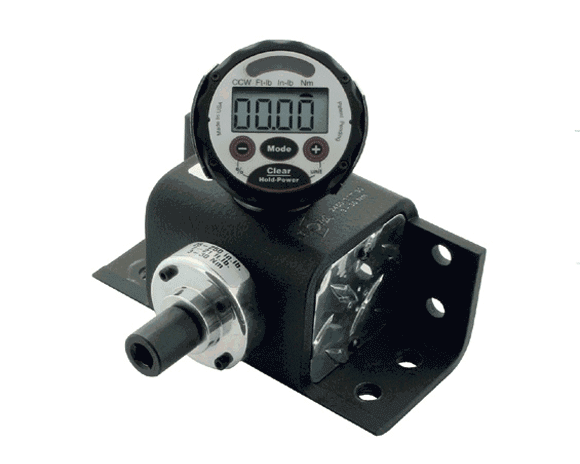

產品名稱.Product Item:電子扭力/扭矩測量表.ELOTRONIC TORQUE TESTERS STT 2450 電子扭力/扭矩測量表。 電子扭力/扭矩測量表是一個固定式測試單位為定標和檢查點擊扭力/扭矩板鉗/扳手。 電子扭力/扭矩測量表是適當的為水平和垂直的使用。 測量的準確性是+/- 1%。 顯示可以為容易被轉動來閱讀數據。 2450 ELOTRONIC Torque Testers STT. The ELOTRONIC STT is a stationary Test Unit for calibration and checking of click-torque wrenches. The ELOTRONIC STT is suitable for horizontal and vertical use. The measuring accuracy is +/- 1%. The display can be turned round for easy reading.
產品型號.Model Number: NO:2450-STT-11.NO:2450-STT-12.NO:2450-STT-30.NO:2450-STT-350.NO:2450-STT-850
2450 |
電子扭力測量表 ELOTRONIC Torque Testers STT |
Application |
測試及調較扭力工具. for testing and adjusting of torque tools (also suitable for click type torque wrenches) |
Type |
reading in Nm, ft.lb or in.lb, large 4 digits numerical display, display can be swivelled into perfect position, acoustical and optical signal via 3 LED, 3 different modes of operation (Track Mode, Peak Hold and First Peak), 精確度為 +/- 1% accuracy +/- 1% |
Standard |
hexagon drive acc. to DIN 3126 Form C 6.3/ISO 1173 square drive acc. to DIN 3120/ISO 1174 |
|
規格.SPECIFICATIONS:
Stock-No. |
Hexagon Drive |
Square Drive |
Range Nm |
Range in.lb. |
Range ft.lb. |
Packing pcs. |
Weight g |
2450-STT 11 |
1 / 4 " |
- |
1 - 11 |
8 - 97 |
0.74 - 8.1 |
1 |
2,160 |
2450-STT 12 |
- |
3 / 8 " |
1.2 - 11.5 |
10 - 100 |
0.85 - 8.5 |
1 |
2,160 |
2450-STT 30 |
- |
3 / 8 " |
3 - 30 |
25 - 250 |
2.1 - 21 |
1 |
2,160 |
2450-STT 350 |
- |
1 / 2 " |
30 - 350 |
300 - 3000 |
25 - 250 |
1 |
2,300 |
2450-STT 850 |
- |
3 / 4 " |
81 - 815 |
720 - 7200 |
60 - 600 |
1 |
9,300 |
*配件.ACCESSORIES:

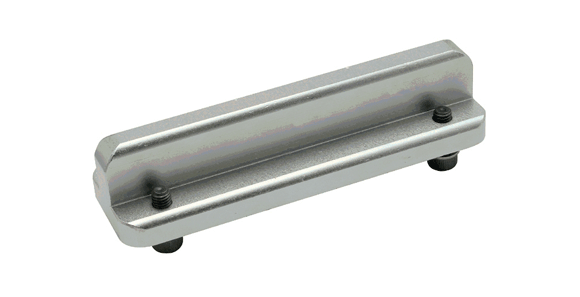

產品名稱.Product Item:安裝架(台式).FIXING DEVICES FOR BENCH VICES 產品型號.Model Number:NO:2450-SB
2450-SB |
安裝架 Fixing Device For Bench Vice |
Application |
裝配 NO:2450-STT 電子扭力測量表. for fixing of ELOTRONIC Torque Tester NO:2450STT in Bench Vice 1495 and 1500. |
Type |
鍍鉻. Chrome Plated. |
Material |
Chrome-Vanadium 31 CrV3, Code-No.1.2208. |
|
規格.SPECIFICATIONS:
Stock-No. |
Width mm |
Packing pcs. |
Weight g |
2450-SB |
165 |
1 |
1,210 | |
|
|
