Feature in Merit
1:POWER SOURCE for vacuum is utilized by YOUR existing COMPRESSOR.
2:NO need any specific power source such as electricity or vacuum pump,etc.
3:NO need any complicated START UP SETTING. lmidiate ready to use by only connecting with your compressor by hose coupling.
4::REGARDLESS if ferrous or non ferrous of stainless, aluminum,plastic can be on the table to work.
5:INSTANT OPERATION and VERY SIMPLE SET UP.
6:Materials:FC300 with precision finish.
!! Note:1&3is our PAT !!
Example of applicable operation in parallel
use hex hole bolts<=16M,with washers<=16M and Dia.30mm

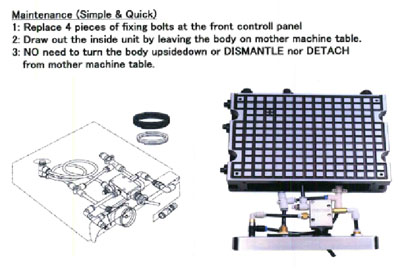

Maintenance (Simple & Quick)
1:Replace 4 pieces of fixing bolts at the front controll panel.
2:Draw out the inside unit by leaving the body on mother machine table.
3:NO need to turn the body upsidedown or DISMANTLE nor DETACH from mother machine table.
|
ITEM |
SIZE(mm)
L x W x H |
MAX
VACUUM
(KN) |
NUMBER of GRIDS |
MAX AIR CONSUMPTION (l/min) |
MAX LOADING
(kg) |
WEIGHT of PRODUC (kg)
|
RETAIL PRICE |
|
SVA2025 |
200 X 250 X 65 |
1.31 |
172 |
30 |
24 |
9 |
190,400 |
|
SVA2540 |
250 X 400 X 65 |
2.84 |
352 |
60 |
50 |
19 |
259,300 |
|
SVA3035 |
300 X 350 X 65 |
2.99 |
370 |
60 |
50 |
20 |
242,900 |
|
SVA3560 |
350 X 600 X 65 |
6.16 |
748 |
100 |
100 |
40 |
362,500 |
Our solid clamps of model SC1400(14M),SC1600(M16) SC1800(M18) are best matching for setting Vacuum Chuch.
